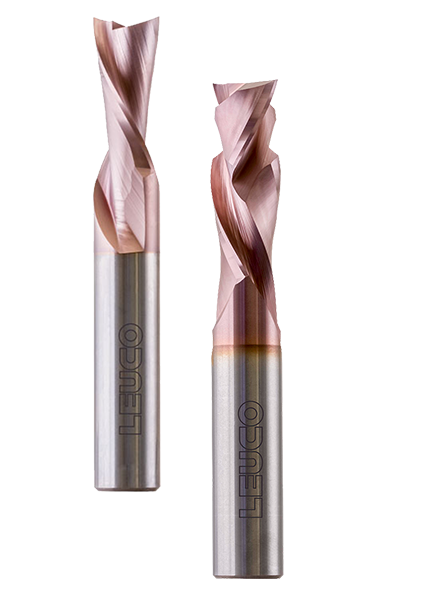

Tungsten Carbide High Performance Standard Compression Spiral with Chipbreaker
Regular price
$148.62 USD
Regular price
Sale price
$148.62 USD
$148.62 USD
Unit price
per
Oops! This item is temporarily experiencing an order fulfillment delay.
- Specifications
- Details
- Description
General Product Details
Applications
Cutting Openings,
Cutting Contours,
Ramp In - Traveling Plunge,
Cutting On Pods,
Panel Upper Surface Finish,
Panel Lower Surface Finish,
Deep - High Load Cutting,
Rough Cut w/Finish Cut Quality
Cutting
Edge
Solid Carbide High Performance (Extended Life),
Performance Coating
Machine
Types
CNC Router,
Point To Point,
Machining Center,
5 Axis Machines
Material
Types
Raw Particleboard,
Raw MDF,
Laminate Particleboard,
Laminate MDF,
Melamine Laminate Particleboard,
Melamine Laminate MDF
Select a new size using the dropdown above to see the size details
Specifications for SKU:
Cutting Edge Diameter
1/2"
Cutting Edge Length Total
1-5/8"
Cutting Edge Length Upcut
.750mm
Cut Type
Standard Compression w/Chipbreaker
Number Of Teeth (Z)
2+2
Overall Length
3-1/2"
Rotation
Right Hand
Shank Diameter
1/2"
Developed for applications that demand the absolute best quality and longest life possible. The Leuco HP series is available in up and down-cut as well as standard and mortise compressions. All HP spirals are made from ultra-hard micro grain carbide, precision ground to a re-designed helical cutting geometry, and are treated with a performance surface coating. All of this comes together to give you a tool, that in most cases, outperforms standard industry spirals by 2-3x when cutting laminated wood composite panels.
