LEUCO Shank-Type Cutters

Tungsten Carbide High Performance Mortise Compression Spiral with Chipbreaker

$115.91 USD
Sale Sold out
Oops! This item is temporarily experiencing an order fulfillment delay.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Cutting Openings, Cutting Contours, Ramp In - Traveling Plunge, Nested Base Cutting, Panel Upper Surface Finish, Panel Lower Surface Finish, Cutting Shallow Groves, Deep - High Load Cutting, Rough Cut w/Finish Cut Quality
Cutting Edge
Solid Carbide High Performance (Extended Life), Performance Coating
Machine Types
CNC Router, Point To Point, Machining Center, 5 Axis Machines
Material Types
Raw Particleboard, Raw MDF, Laminate Particleboard, Laminate MDF, Melamine Laminate Particleboard, Melamine Laminate MDF
Select a new size using the dropdown above to see the size details

Specifications for SKU:

Cutting Edge Diameter
1/2"
Cutting Edge Length Total
1-3/8"
Cutting Edge Length Upcut
.200mm
Cut Type
Mortise Compression w/Chipbreaker
Number Of Teeth (Z)
2+2
Overall Length
3-1/2"
Rotation
Right Hand
Shank Diameter
1/2"

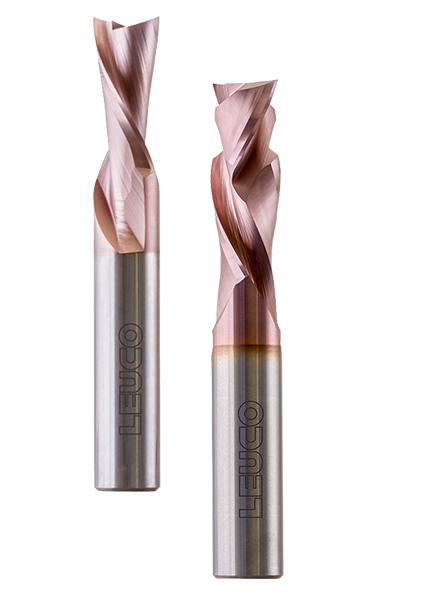

Developed for applications that demand the absolute best quality and longest life possible. The Leuco HP series is available in up and down-cut as well as standard and mortise compressions. All HP spirals are made from ultra-hard micro grain carbide, precision ground to a re-designed helical cutting geometry, and are treated with a performance surface coating. All of this comes together to give you a tool, that in most cases, outperforms standard industry spirals by 2-3x when cutting laminated wood composite panels.
