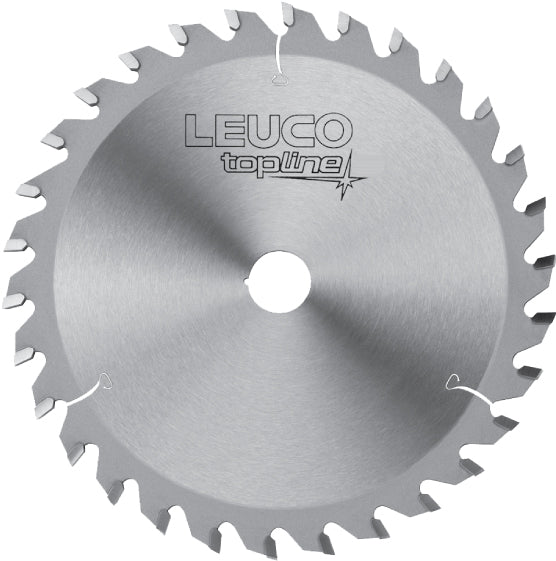

LEUCO Circular Saw Blades

Topline Scoring Saw Blades with Conical & Top Bevel Teeth for Plastic Laminated Panels

$162.09 USD
$162.09 USD
Sale Sold out
This product may experience extended delivery times.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Conical Scoring
Cutting Edge
Carbide Grade HLB 03
Machine Types
Table Saw, Sliding Table Saw
Material Types
Raw Particleboard, Raw MDF, Laminate Particleboard, Laminate MDF, Melamine Laminate Particleboard, Melamine Laminate MDF
Select a new size using the dropdown above to see the size details

Specifications for SKU: 192734

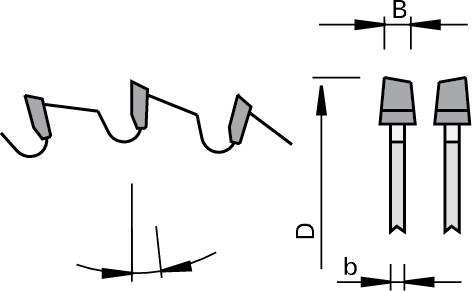

Body Thickness (b)
3.2mm
Bore Diameter (Ø d)
45mm
Cutting Circle Diameter (Ø D)
180mm
Cut Width (B)
4.45-5.25mm
Hook Angle
8
Machine Brands
Holzma
Number Of Teeth (Z)
36
Pinholes
‭ ‬
Tooth Shape-style
KO-WS

For panel sizing saws with scoring of plastic-laminated panels these conical/alternate top bevel “KO-WS” provide optimum cutting quality thanks to improved runout accuracy. The KO-WS tooth configuration brings a low motor output and also a longer edge life compared to the HL Board 03 plus score blade materials. These blades are height adjustable to kerf of main saw blade with an optimum scoring depth 1.0-2.0mm
