Tungsten Carbide Tipped 2 Flute 57.5mm Mosquito Dowel Bit
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
The LEUCO Mosquito dowel bits provide chip-free drilling of dowel holes in solid woods and wood-based panels on CNC machining centers, automatic and portable boring machines. The tungsten carbide tipped drills are designed with a special cutting-edge geometry and two spurs with centering point to provide chip-free hole edges and safe drilling. The tool life is increased by up to six times compared to traditional dowel bits thanks to the wear-resistant carbide plunging tip. LEUCO Mosquito drills provide optimal cutting solutions with consistent quality of processing panels efficiently, chip-free.
VENDOR: LEUCO Boring Tools
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| BOR 5 x 10 x 25 x 57.5 RH | $39.64 | 181167 | In Stock |
| BOR 5 x 10 x 25 x 57.5 LH | $39.64 | 181168 | In Stock |
| BOR 6 x 10 x 25 x 57.5 RH | $49.29 | 181521 | In Stock |
| BOR 6 x 10 x 25 x 57.5 LH | $49.29 | 181522 | In Stock |
| BOR 7 x 10 x 27 x 57.5 RH | $47.83 | 183158 | In Stock |
| BOR 7 x 10 x 27 x 57.5 LH | $47.83 | 183159 | In Stock |
| BOR 8 x 10 x 25 x 57.5 RH | $41.49 | 181169 | In Stock |
| BOR 8 x 10 x 25 x 57.5 LH | $41.49 | 181170 | In Stock |
| BOR 9 x 10 x 27 x 57.5 RH | $57.90 | 183161 | In Stock |
| BOR 10 x 10 x 25 x 57.5 RH | $59.70 | 181523 | In Stock |
| BOR 10 x 10 x 25 x 57.5 LH | $59.70 | 181524 | In Stock |

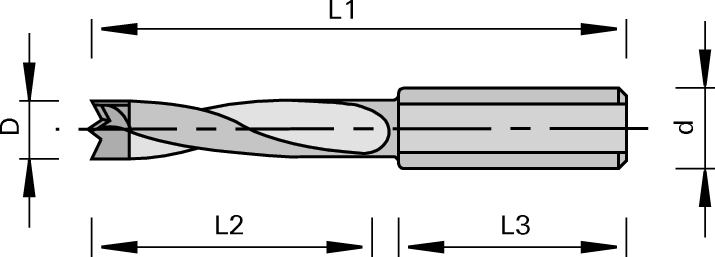

Specifications for SKU: 181167
| Diameter - Outermost cutting point [mm] | 5 |
| Bore / shank diameter [mm] | 10 |
| Clamping length [mm] | 27 |
| Number of teeth | 2+2 |
| Number of teeth diameter [mm] | 2 |
| Total length | 57.5 |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 5 |
| Diameter [mm] | 5 |
| Cutting direction | Right-hand rotation [RH] |
| Type of feed | Manual feed [MAN] |
| Axial working depth 1 [mm] | 25 |
| Weight Kg | 0.017 |
| RPM max [min-1] | 8000 |
Application
- —for chip-free drilling of dowel holes in solid woods and wood-based panels
Machines
- —portable boring machines
- —automatic boring machines
- —CNC machining centers
Design
- —special cutting edge geometry
- —2 spurs
- —centering point
- —HW-tipped
Advantages
- —chip-free hole edges thanks to special cutting edge geometry with spurs
- —safe drilling thanks to centering point
- —high process safety thanks to constant quality of the bores for a long time
- —tool life increased up to sixfold compared to traditional dowel bits thanks to wear-resistant HW plunging tip
- Processing instructions: Duropal XTreme
- Processing instructions: EGGER PerfectSense
- Processing instructions: Swiss Krono SwissAFP panels
