LEUCO Shank-Type Cutters

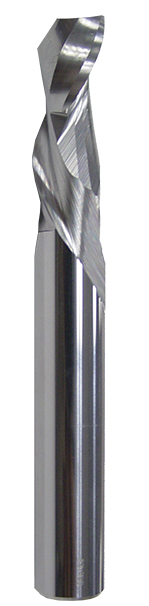

Solid Tungsten Carbide Compression Hard Surface Spiral

$79.04 USD
Sale Sold out
Oops! This item is temporarily experiencing an order fulfillment delay.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Cutting Openings, Cutting Contours, Ramp In - Traveling Plunge, Cutting On Pods, Panel Upper Surface Finish, Panel Lower Surface Finish, Finish Cutting
Cutting Edge
Solid Carbide (Industrial Quality)
Machine Types
CNC Router, Point To Point, Machining Center, 5 Axis Machines
Material Types
Solid Surface, Phenolic Materials
Select a new size using the dropdown above to see the size details

Specifications for SKU:

Cutting Edge Diameter
1/2"
Cutting Edge Length Total
1"
Number Of Teeth (Z)
1+1
Overall Length
3"
Shank Diameter
1/2"

Solid Carbide Compression Spirals are best suited for CNC Routers for sizing, jointing, and dividing in raw and laminated hard surface panel materials, for cutting of openings and contours or traveling plunge cuts using Z and X or Y axis. The LEUCO compression spirals have an provide and excellent finish on top and bottom of the material with high rates of feed and best quality thanks for helical geometry. The design features n max 30,000 min – 1. Improve your performance by using LEUCO precision clamping systems.
