LEUCO Boring Tools

Solid Tungsten Carbide 2 Flute 100mm Mosquito Through-Hole Bit

$56.80 USD
Sale Sold out
Oops! This item is temporarily experiencing an order fulfillment delay.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Through Hole Drilling
Body Design
2 Flute
Cutting Edge
Solid Carbide High Performance (Extended Life)
Machine Types
Line Boring Machine, Point To Point, Machining Center
Material Types
Veneer Plywood, Melamine Laminate Particleboard, Melamine Laminate MDF
Select a new size using the dropdown above to see the size details

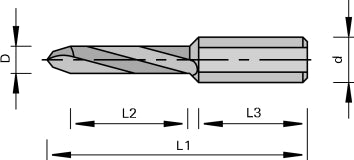

Specifications for SKU:

Drill Diameter
6mm
Flute Length
35mm
Overall Length
100mm
Rotation
Right Hand
Shank Diameter
10mm
Shank Length
50mm

Drill bits with low cutting pressure and good chip removal are recommended for drilling processes such as dowels and through-holes. The LEUCO Mosquito bits provide chip-free drilling of through-holes in solid woods and wood-based panels on CNC machining centers, automatic and portable boring machines. These bits are designed with a solid carbide body and a special cutting-edge geometry and feature a boring part made from fine grain solid tungsten carbide. The solid carbide design brings high feed rates and edge life increases up to six times compared to traditional dowel bits.
