LEUCO Circular Saw Blades

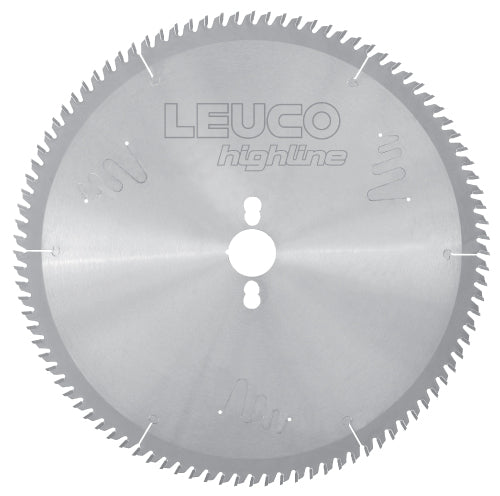

Highline Tungsten Carbide Hollowground Table & Miter Chop Saw Blade

$100.70 USD
Sale Sold out
Oops! This item is temporarily experiencing an order fulfillment delay.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Trim Cutting, Dividing Cuts, Panel Sizing
Cutting Edge
Carbide Grade HLB 06
Machine Types
Table Saw
Material Types
Plywood With Veneer, Laminate MDF, Laminate Particleboard, Melamine Laminate MDF, Melamine Laminate Particleboard
Select a new size using the dropdown above to see the size details

Specifications for SKU:

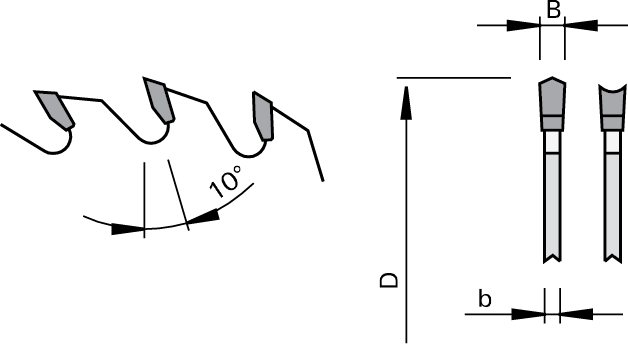

Body Thickness (b)
2.2mm
Bore Diameter (Ø d)
5/8"
Cutting Circle Diameter (Ø D)
10"
Cut Width (B)
3.2mm
Hook Angle
10
Number Of Teeth (Z)
48
Tooth Shape-style
Hollowground

Table, chop, & miter saws are used for sizing cuts in wood based panels, laminated panels, non-ferrous metals, solid surface, & heavy plastics. The LEUCO design features a laser plate technology with tooth configurations in triple chip, flat (Tr/Ch Flat), triple chip; flat w/chamfers or inverted v-hollowground. The LEUCO HL board 06 for carbide & 10 for non-ferrous metals bring optimum cutting quality & extended edge life. *Alteration of bore possible if needed
